MIG Welder
010203

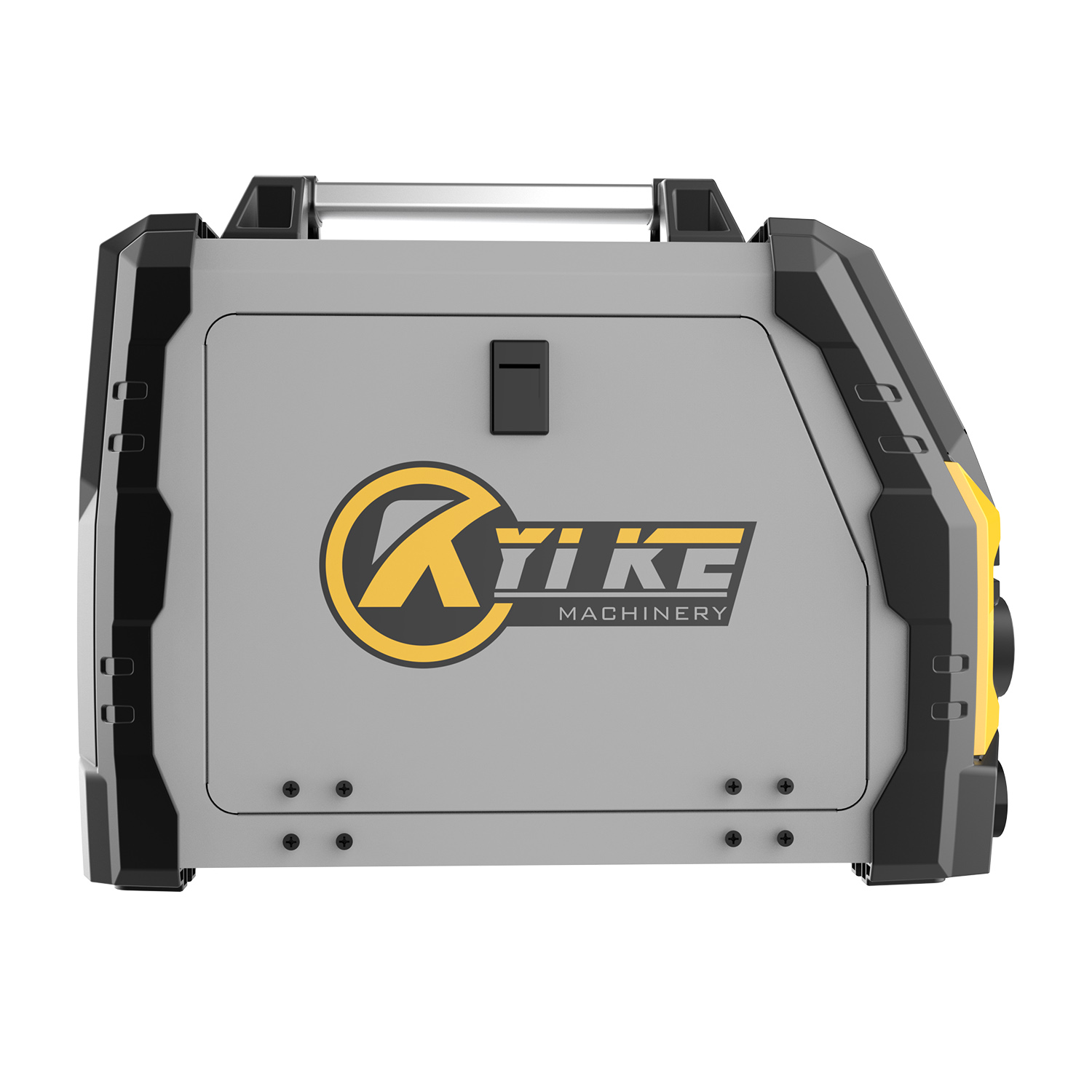

200Amp 110/220V Dual Voltage MIG Welding Machine, 5 in 1 Gas MIG/Flux Core MIG/Spot Welding/Lift TIG/Stick
Features
5 IN 1 MIG Welder: The MIG/MMA-200 is capable of true lift TIG welding as well as stick welding (need to purchase extra tig lift torch, not included inside product), 5 Functions in 1 of Gas MIG/Flux Core MIG/Spot welding/Lift TIG/Stick.
Botton Type Display: increases the visual clarity and improves the efficiency of the operation.
IGBT Inverter Technology: Full 30-205Amp(max) with digital display, reliable quality and stable performance.
Synergic Control: Adjusting the amperage or choosing different wire thicknesses,the voltage and wire feeding speed will automatically change.Even a beginner can easily use it.
Aluminum MIG Welding: Automatic matching welding aluminum material, household appliances
Safety First: Automatic protection function for over-current, over-voltage and over-heating.
description2
| MIG: | Manual setting | 2T: | Manual mode |
| SYN MIG: | Anto setting | 4T: | Semi-automatic mode |
| MMA: | Stick welding | Spot: | Spot welding |
| TIG: | LIFT-TIG argon welding | 1.0: | Solid/flud wire |
| CO2: | Fe CO2 | 0.9: | Solid/flux wire |
| MIX: | 75%Ar+25%CO2 | 0.8: | Solid/flux wire |
| Flux: | Flux | 0.6: | Solid wire |
| AL: | Welding Alumium |
SPECIFICATION
| MODEL | MMA-160A | MMA-180A | MMA-200A |
| Input voltage(V) | 220V 110/220V | 220V 110/220V | 220V 110/220V |
| Frequency(Hz) | 50/60 | 50/60 | 50/60 |
| No-load Voltage(V) | 62V | 62V | 62V |
| Current Adjusting(A) | 20-160A | 20-180A | 20-200A |
| Input Capacity(KW) | 5.7 | 6.6 | 7.5 |
| Rated Duty cycle(%) | 60% | 60% | 60% |
| Class of insulation | F | F | F |
| Applied welding rod(mm) | Φ1.6-4.0mm | Φ1.6-5.0mm | Φ1.6-5.0mm |
| Case protection degree | IP21S | IP21S | IP21S |
| Efficiency(%) | 80% | 80% | 80% |
| N.W(KGS) | 5.6 | 6.6 | 7.5 |
| The machine Dimension(cm) | 35*15.5*25 | 35*15.5*25 | 35*15.5*25 |
Welding Photos Show You
Can Weld Various of Metals
It can weld stainless steel,alloy steel,carbon steel,cooper and other color metal.
It can apply to electrode of different specifications and materials,including acidity,alkalescence,and fibre.
Effective and Stable Arc
Can weld mild steel up to 5/16 inch (8.0mm) plate.
The welding power source can offer stronger,quicker and more stable arc.
Arc Welding fits rods E6013.
Synergic Control
Adjusting the amperage or choosing different wire thicknesses,the voltage and wire feeding speed will automatically change.
For example: you press the button "1.0 Syn‘’, the machine will offer an suggested current and matched voltage value for welding 1.0 wire.
Factory display
Exhibition
FAQ
1.Q: Are you a factory or trading company?
A: We are factory with about 4 assembly product line and 100 employees,we have ERP system and equipment, so we can meet both your quantity and quality demands.Our factory qualification rate is 99.998%
2.Q: Can I get some samples?
A: Yes,we are glad to offer you samples.After price and large order confirmed, the samples fee will be regressed.
3.Q:MOQ
A:Generally if you choose the different products,our minimum order qty.also will be different.
4.Q : Is OEM and ODM service available ?
A:Yes, product could print your logo , or customized by your design .
5.Q : How is your quality control?
A: Strict quality control is performed in every procedure from material sourcing, processing and testing to packing.Each machine loading test at least 20 minute.
6.Q: Delivery
A:The goods need about 45 days to be made after receive deposit.
7.Q:Payment
A:30% deposit,70% balance, you could pay by T/T, L/C, Action Now
8.Q:Why choose Yike?
a. We are welding machine MANUFACTURER,so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,IGBT tube, diode,capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of repairing,we just need to change the bad pc board.
d. We provide Warranty period of 1 year for all our items
