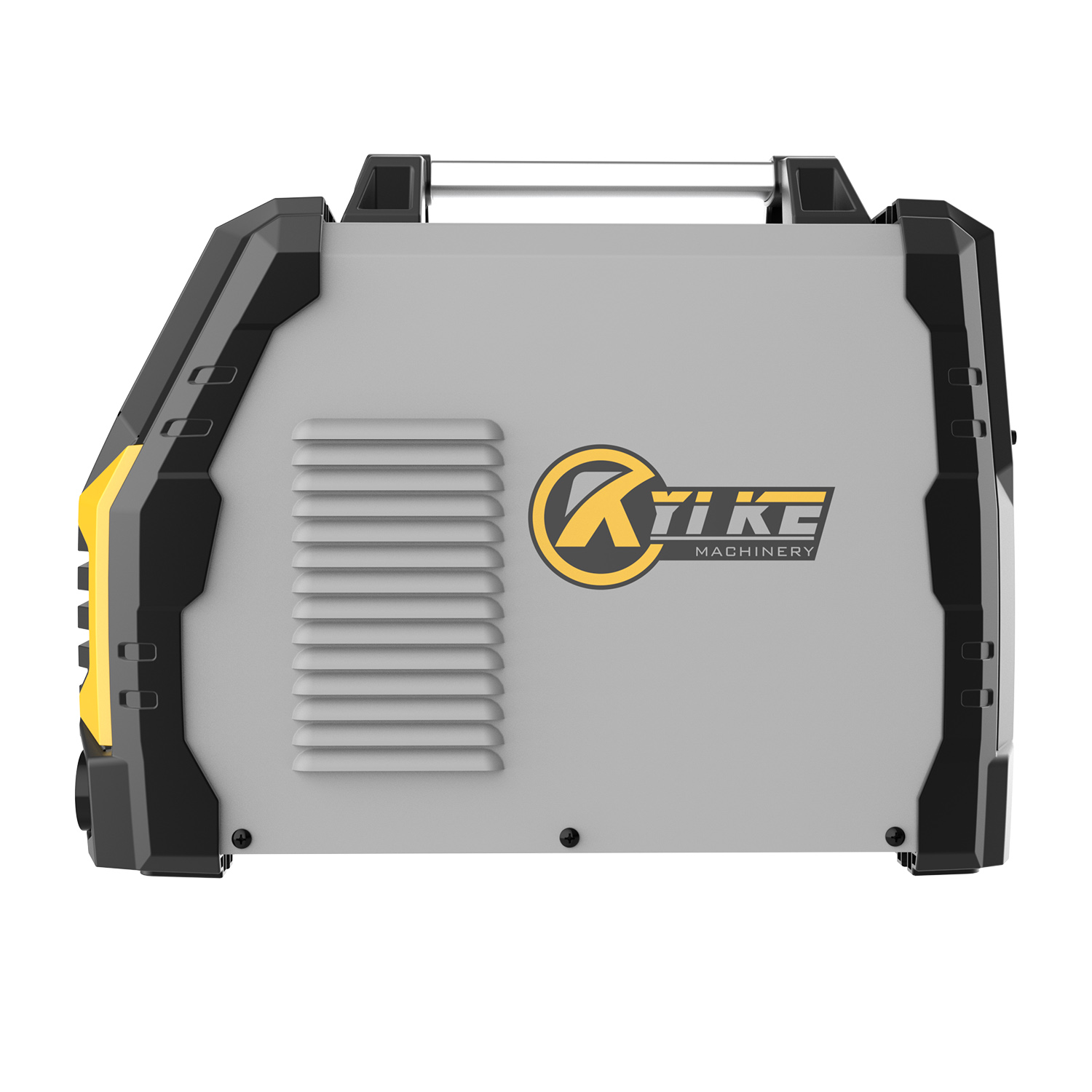

Stick Welder
01
Digital IGBT Inverter Welding Machine with Hot Start Arc Force Anti-Stick VRD
Features
Hot-start makes the arc striking easier.
Arc-force provide smoother welding and deeper penetration.
Anti-stick easy the electrode removal from the workpiece.
VRD function -- Safe for welders.
Lift-arc TIG function -- Really easy to ignite.
Auto protection against over heat, over current, over-voltage, under-voltage and short circuit.
Outstanding Arc stability with low spatter and deep bath.
description2
SPECIFICATION
| MODEL | MMA-160A | MMA-180A | MMA-200A |
| Input voltage(V) | 220V 110/220V | 220V 110/220V | 220V 110/220V |
| Frequency(Hz) | 50/60 | 50/60 | 50/60 |
| No-load Voltage(V) | 62V | 62V | 62V |
| Current Adjusting(A) | 20-160A | 20-180A | 20-200A |
| Input Capacity(KW) | 5.7 | 6.6 | 7.5 |
| Rated Duty cycle(%) | 60% | 60% | 60% |
| Class of insulation | F | F | F |
| Applied welding rod(mm) | Φ1.6-4.0mm | Φ1.6-5.0mm | Φ1.6-5.0mm |
| Case protection degree | IP21S | IP21S | IP21S |
| Efficiency(%) | 80% | 80% | 80% |
| N.W(KGS) | 5.6 | 6.6 | 7.5 |
| The machine Dimension(cm) | 35*15.5*25 | 35*15.5*25 | 35*15.5*25 |
Factory display
Exhibition
FAQ
1.Q: Are you a factory or trading company?
A: We are factory with about 4 assembly product line and 100 employees,we have ERP system and equipment, so we can meet both your quantity and quality demands.Our factory qualification rate is 99.998%
2.Q: Can I get some samples?
A: Yes,we are glad to offer you samples.After price and large order confirmed, the samples fee will be regressed.
3.Q:MOQ
A:Generally if you choose the different products,our minimum order qty.also will be different.
4.Q : Is OEM and ODM service available ?
A:Yes, product could print your logo , or customized by your design .
5.Q : How is your quality control?
A: Strict quality control is performed in every procedure from material sourcing, processing and testing to packing.Each machine loading test at least 20 minute.
6.Q: Delivery
A:The goods need about 45 days to be made after receive deposit.
7.Q:Payment
A:30% deposit,70% balance, you could pay by T/T, L/C, Action Now
8.Q:Why choose Yike?
a. We are welding machine MANUFACTURER,so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,IGBT tube, diode,capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of repairing,we just need to change the bad pc board.
d. We provide Warranty period of 1 year for all our items
