Stick Welder
01

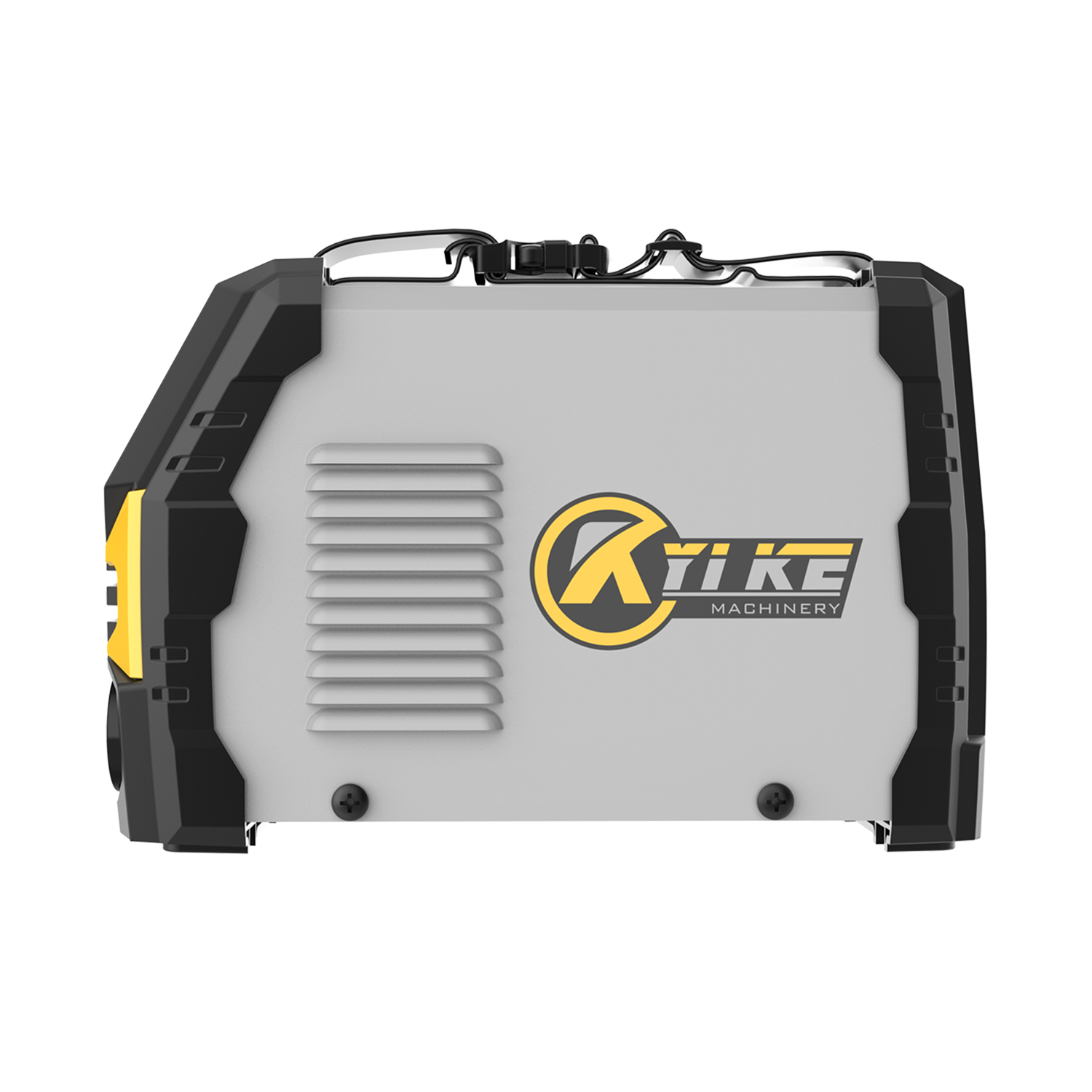

DIY Portable Mini Dc Inverter Welding Machine Home Use
Features
IGBT technology for better welding quality , greater welding penetration,reduced energy consumption and increased efficiency.
Unbeatable automatic short circuit current protection, easy ignition, less spark, provides excellent arc strike performance at rust surface.
Run 3.2mm MMA electrode.
Multi protection of over voltage, over heat, over current and over load protection.
Hot start, anti-stick, less spark, reliable. Ideal welding equipment for entry-level welder.
Equip with volume ( Current ) for easy and better welding setting.
Digital display provides highly accurate welding.
Professional cooling system in order to increase efficiency and continuance welding.
description2
SPECIFICATION
| MODEL | MINI-80A | MINI-100A | MINI-120A | MINI-140A | MINI-160A |
| Input voltage(V) | 220V 110/220V | 220V 110/220V | 220V 110/220V | 220V 110/220V | 220V 110/220V |
| Frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| No-load Voltage(V) | 62V | 62V | 62V | 62V | 62V |
| Current Adjusting(A) | 20-80A | 20-100A | 20-120A | 20-140A | 20-160A |
| Input Capacity(KW) | 2.1 | 2.8 | 3.5 | 4.2 | 5 |
| Rated Duty cycle(%) | 60% | 60% | 60% | 60% | 60% |
| Class of insulation | F | F | F | F | F |
| Applied welding rod(mm) | Φ1.6-2.5mm | Φ1.6-2.5mm | Φ1.6-3.2mm | Φ1.6-3.2mm | Φ1.6-4.0mm |
| Case protection degree | IP21S | IP21S | IP21S | IP21S | IP21S |
| Efficiency(%) | 80% | 80% | 80% | 80% | 80% |
| N.W(KGS) | 3.3 | 3.6 | 4.1 | 4.3 | 4.6 |
| The machine Dimension(cm) | 26.5*9.7*15.2 | 26.5*9.7*15.2 | 26.5*9.7*15.2 | 26.5*9.7*15.2 | 26.5*9.7*15.2 |
Factory display
Exhibition
FAQ
1.Q: Are you a factory or trading company?
A: We are factory with about 4 assembly product line and 100 employees,we have ERP system and equipment, so we can meet both your quantity and quality demands.Our factory qualification rate is 99.998%
2.Q: Can I get some samples?
A: Yes,we are glad to offer you samples.After price and large order confirmed, the samples fee will be regressed.
3.Q:MOQ
A:Generally if you choose the different products,our minimum order qty.also will be different.
4.Q : Is OEM and ODM service available ?
A:Yes, product could print your logo , or customized by your design .
5.Q : How is your quality control?
A: Strict quality control is performed in every procedure from material sourcing, processing and testing to packing.Each machine loading test at least 20 minute.
6.Q: Delivery
A:The goods need about 45 days to be made after receive deposit.
7.Q:Payment
A:30% deposit,70% balance, you could pay by T/T, L/C, Action Now
8.Q:Why choose Yike?
a. We are welding machine MANUFACTURER,so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,IGBT tube, diode,capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of repairing,we just need to change the bad pc board.
d. We provide Warranty period of 1 year for all our items
