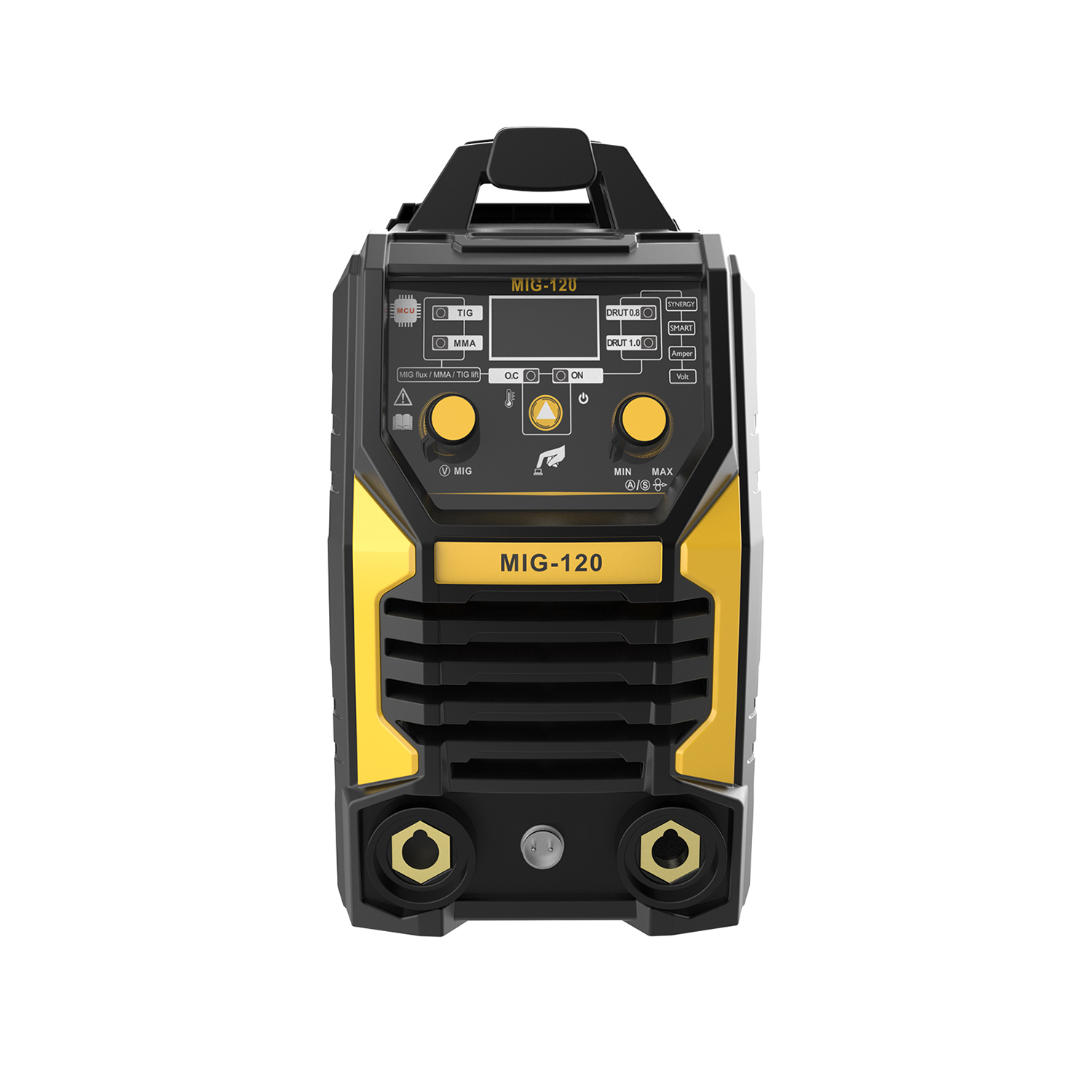

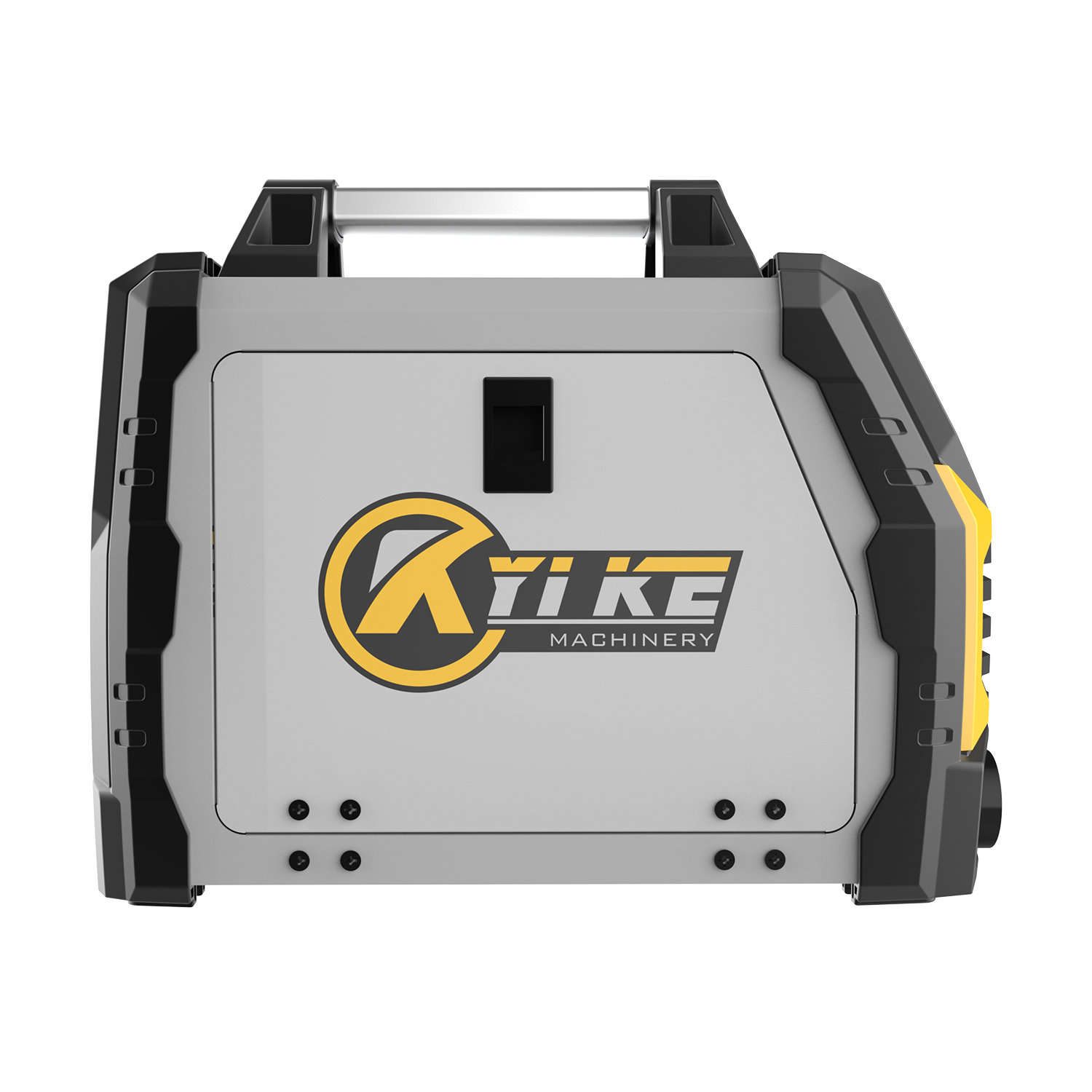

Gasless Flux Core Mig Welder with Wire Feeder Electric Welding Machine
Features
Flux-cored arc welding (FCAW or FCA) is a semi-automatic or automatic arc welding process. FCAW requires a continuously-fed consumable tubular electrode containing a flux and a constant-voltage or, less commonly, a constant-current welding power supply. An externally supplied shielding gas is sometimes used, but often the flux itself is relied upon to generate the necessary protection from the atmosphere, producing both gaseous protection and liquid slag protecting the weld.
FCAW may be an "all-position" process with the right filler metals (the consumable electrode).
No shielding gas needed with some wires making it suitable for outdoor welding and/or windy conditions.
A high-deposition rate process (speed at which the filler metal is applied) in the 1G/1F/2F.
Some "high-speed" (e.g., automotive) applications.
As compared to SMAW and GTAW, there is less skill required for operators.
Less precleaning of metal required.
Metallurgical benefits from the flux such as the weld metal being protected initially from external factors until the slag is chipped away.
Porosity chances very low.
Less equipment required, easier to move around (no gas bottle).
description2
SPECIFICATION
| MODEL | MIG/MMA-120A | MIG/MMA-140A |
| Input power | 220V 110/220V | 220V 110/220V |
| Rated input current(A) | 3.9 | 4.7 |
| Rated input current(KVA) | 17.5 | 19.3 |
| Open circuit voltage(V) | 60 | 60 |
| MIG output current range(A) | 35-120 | 35-140 |
| MMA output current range（A） | 20-120 | 20-140 |
| Rated duty cycle | 60% | 60% |
| Suitable welding wire(mm) | 0.8/0.9/1.0 | 0.8/0.9/1.0 |
| Suitable electrode (mm) | 1.6-3.2 | 1.6-3.2 |
| Protection grade | F | F |
| Insulation class | IP21S | IP21S |
| N.W(KGS) | 12 | 12.5 |
| The machine size(cm) | 35*15.5*25 | 35*15.5*25 |
Factory display
Exhibition
FAQ
1.Q: Are you a factory or trading company?
A: We are factory with about 4 assembly product line and 100 employees,we have ERP system and equipment, so we can meet both your quantity and quality demands.Our factory qualification rate is 99.998%
2.Q: Can I get some samples?
A: Yes,we are glad to offer you samples.After price and large order confirmed, the samples fee will be regressed.
3.Q:MOQ
A:Generally if you choose the different products,our minimum order qty.also will be different.
4.Q : Is OEM and ODM service available ?
A:Yes, product could print your logo , or customized by your design .
5.Q : How is your quality control?
A: Strict quality control is performed in every procedure from material sourcing, processing and testing to packing.Each machine loading test at least 20 minute.
6.Q: Delivery
A:The goods need about 45 days to be made after receive deposit.
7.Q:Payment
A:30% deposit,70% balance, you could pay by T/T, L/C, Action Now
8.Q:Why choose Yike?
a. We are welding machine MANUFACTURER,so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,IGBT tube, diode,capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of repairing,we just need to change the bad pc board.
d. We provide Warranty period of 1 year for all our items
description2
