MIG Welder
0102030405

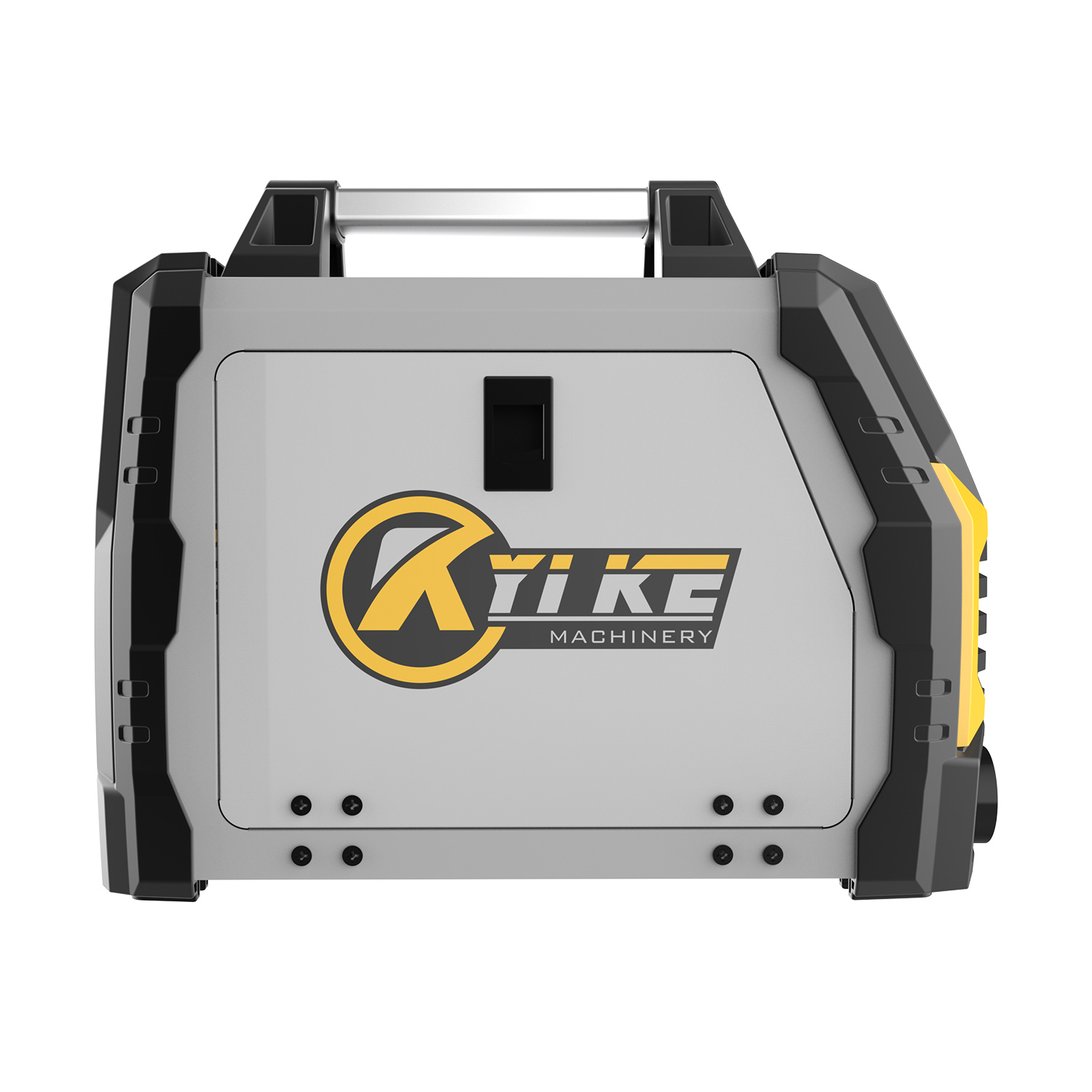

MIG LIFT TIG MMA with Gas and Flux Welder 140A Wire for Welder 3 in 1 DC IGBT Inverter
Features
Metal Inert Gas (MIG) welding is an arc welding process that uses a continuous solid wire electrode heated and fed into the weld pool from a welding gun. The two base materials are melted together forming a join.
1. Powered by standard 110(120)V household current.
2. Up to 135A output current that can weld mild steel up to 1/8 inch (3.0mm) plate.
3. Weld voltage micro-adjust from -5 to +5 (Low to high, -1.5V to +1.5V).
4. Equipped with a smart digital display, read the output welding current.
6. Come with a safety feature that the welding machine is automatically protected when it is too hot or the volt and current exceed their range.
7. Weld up to .030"(0.8mm) and .035" (0.9mm)with flux core wire.Can Handle E7018 basic electrode.
8. Multi-functions in one machine: Suitable for MMA, Lift TIG, Flux MIG. Can weld stainless steel and carbon steel.
description2
SPECIFICATION
| MODEL | MIG/MMA-120A | MIG/MMA-140A |
| Input power | 220V 110/220V | 220V 110/220V |
| Rated input current(A) | 3.9 | 4.7 |
| Rated input current(KVA) | 17.5 | 19.3 |
| Open circuit voltage(V) | 60 | 60 |
| MIG output current range(A) | 35-120 | 35-140 |
| MMA output current range（A） | 20-120 | 20-140 |
| Rated duty cycle | 60% | 60% |
| Suitable welding wire(mm) | 0.8/0.9/1.0 | 0.8/0.9/1.0 |
| Suitable electrode (mm) | 1.6-3.2 | 1.6-3.2 |
| Protection grade | F | F |
| Insulation class | IP21S | IP21S |
| N.W(KGS) | 12 | 12.5 |
| The machine size(cm) | 35*15.5*25 | 35*15.5*25 |
Factory display
Exhibition
FAQ
1.Q: Are you a factory or trading company?
A: We are factory with about 4 assembly product line and 100 employees,we have ERP system and equipment, so we can meet both your quantity and quality demands.Our factory qualification rate is 99.998%
2.Q: Can I get some samples?
A: Yes,we are glad to offer you samples.After price and large order confirmed, the samples fee will be regressed.
3.Q:MOQ
A:Generally if you choose the different products,our minimum order qty.also will be different.
4.Q : Is OEM and ODM service available ?
A:Yes, product could print your logo , or customized by your design .
5.Q : How is your quality control?
A: Strict quality control is performed in every procedure from material sourcing, processing and testing to packing.Each machine loading test at least 20 minute.
6.Q: Delivery
A:The goods need about 45 days to be made after receive deposit.
7.Q:Payment
A:30% deposit,70% balance, you could pay by T/T, L/C, Action Now
8.Q:Why choose Yike?
a. We are welding machine MANUFACTURER,so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,IGBT tube, diode,capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of repairing,we just need to change the bad pc board.
d. We provide Warranty period of 1 year for all our items
