Stick Welder
0102030405

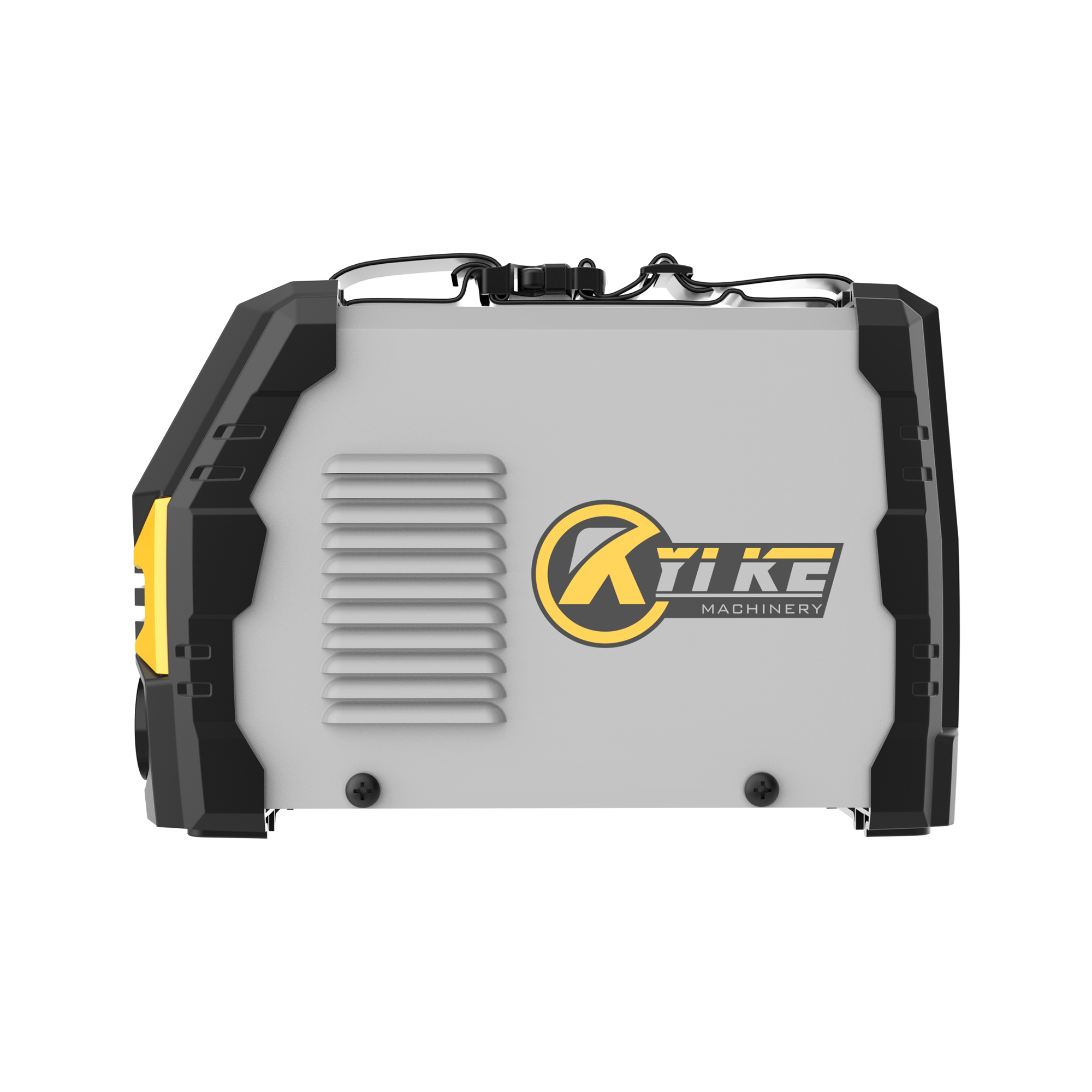

MMA-120A LCD Digital with Lift-Tig Pulse Tig Mini Portable Inverter Welding Machine
Features
MMA is short for Manual Metel arc, which is the easiest and most popular function among all welding machines. It's also known as SMAW, which is short for Shielded Metal Arc Welding. As the MMA machines have always packed with earth clamp set and electrode holder set, users just need to prepare suitable electrodes before using the machines for connecting certain metal pieces.
Electrodes are used in MMA machines as the welding consumables. Among MMA machines, the main extra functions include ANTI-STICK, ARC FORCE, HOT START and VRD. Machines without those extra functions can also be well used. Foods with condiments will taste better, and MMA machines with those functions will be much marvelous in performance.
No matter how great the inverter technology develops,MMA machines will be always the priority choice for hobby usage purpose.
description2
MMA MODE WELDING
Pulse Lift-tig Mode WELDING
SPECIFICATION
| MODEL | MINI-80A | MINI-100A | MINI-120A | MINI-140A | MINI-160A |
| Input voltage(V) | 220V 110/220V | 220V 110/220V | 220V 110/220V | 220V 110/220V | 220V 110/220V |
| Frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| No-load Voltage(V) | 62V | 62V | 62V | 62V | 62V |
| Current Adjusting(A) | 20-80A | 20-100A | 20-120A | 20-140A | 20-160A |
| Input Capacity(KW) | 2.1 | 2.8 | 3.5 | 4.2 | 5 |
| Rated Duty cycle(%) | 60% | 60% | 60% | 60% | 60% |
| Class of insulation | F | F | F | F | F |
| Applied welding rod(mm) | Φ1.6-2.5mm | Φ1.6-2.5mm | Φ1.6-3.2mm | Φ1.6-3.2mm | Φ1.6-4.0mm |
| Case protection degree | IP21S | IP21S | IP21S | IP21S | IP21S |
| Efficiency(%) | 80% | 80% | 80% | 80% | 80% |
| N.W(KGS) | 3.3 | 3.6 | 4.1 | 4.3 | 4.6 |
| The machine Dimension(cm) | 26.5*9.7*15.2 | 26.5*9.7*15.2 | 26.5*9.7*15.2 | 26.5*9.7*15.2 | 26.5*9.7*15.2 |
Factory display
Exhibition
FAQ
1.Q: Are you a factory or trading company?
A: We are factory with about 4 assembly product line and 100 employees,we have ERP system and equipment, so we can meet both your quantity and quality demands.Our factory qualification rate is 99.998%
2.Q: Can I get some samples?
A: Yes,we are glad to offer you samples.After price and large order confirmed, the samples fee will be regressed.
3.Q:MOQ
A:Generally if you choose the different products,our minimum order qty.also will be different.
4.Q : Is OEM and ODM service available ?
A:Yes, product could print your logo , or customized by your design .
5.Q : How is your quality control?
A: Strict quality control is performed in every procedure from material sourcing, processing and testing to packing.Each machine loading test at least 20 minute.
6.Q: Delivery
A:The goods need about 45 days to be made after receive deposit.
7.Q:Payment
A:30% deposit,70% balance, you could pay by T/T, L/C, Action Now
8.Q:Why choose Yike?
a. We are welding machine MANUFACTURER,so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,IGBT tube, diode,capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of repairing,we just need to change the bad pc board.
d. We provide Warranty period of 1 year for all our items
