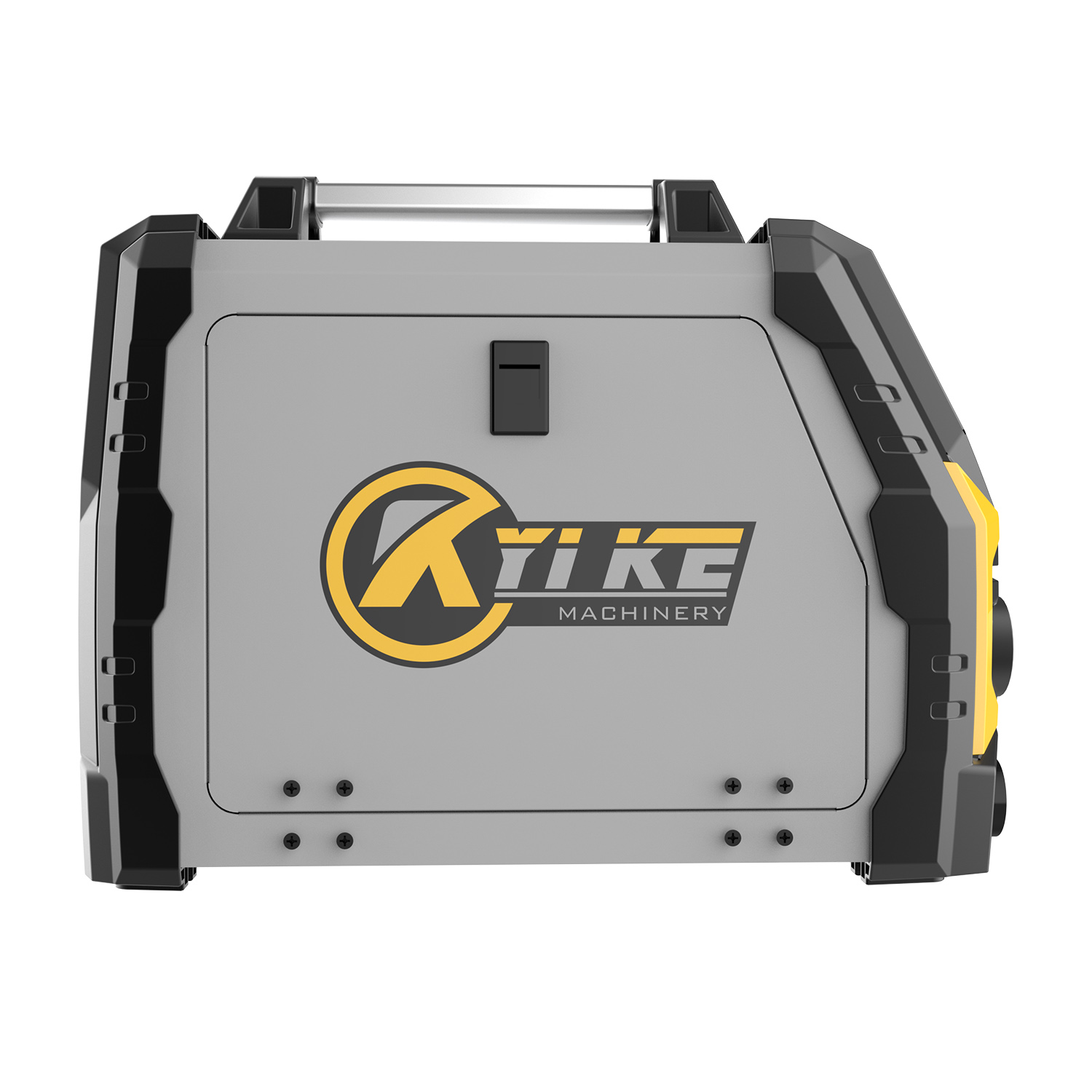

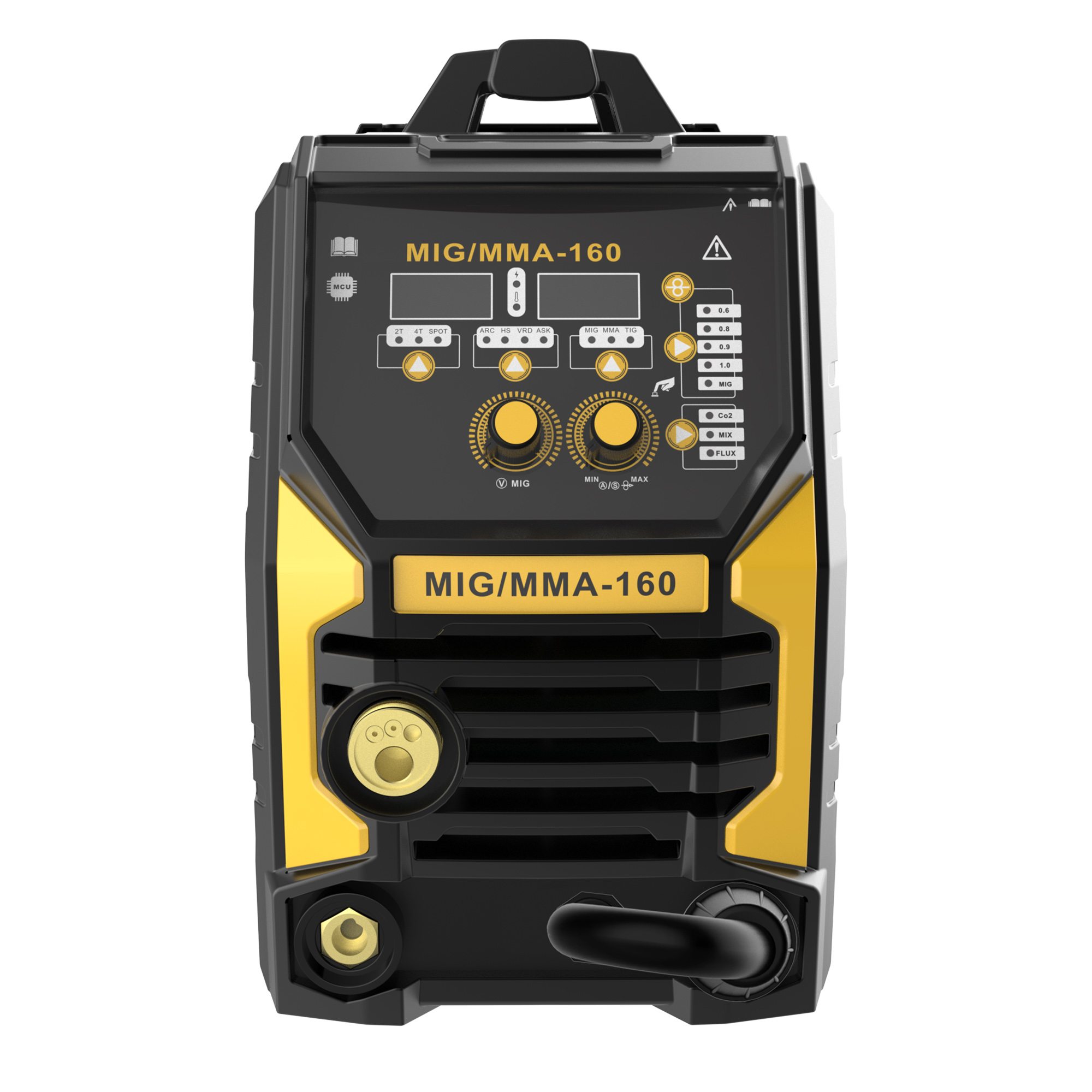

YIKE MIG/MMA-200A 110/220V Dual Voltage MIG Welding Machine, 5 in 1 Gas MIG/Flux Core Weldong/Spot Welding/Lift TIG/Stick Welder
Features
Synergy All in One: Experience the future of welding with our multi-function welder machine that supports MIG with gas, MIG without gas, Lift TIG, and MMA. The synergistic function allows you to pre-program parameters based on wire diameter and gas-metal combination, streamlining your welding process and ensuring optimal results. Start your welding journey with confidence and versatility.
2T & 4T Functions: Featuring a toggle switch for 2T and 4T modes, this Aluminum welder machine offers flexibility for different welding needs. Use 4T for long welding jobs where you need to release your finger, and 2T for precise re-tack welding, transient welding, or thin plate welding. The 2T/4T function is designed to support extended welding operations.
Feeding Roller System: The YIKE gasless flux cored welder is equipped with two wire feeding wheels compatible with 0.6/0.8 and 1.0/1.2 diameter wires. It's designed to work with 1kg to 5kg spools of strong core welding wire in diameters of 0.6/0.8/0.9/1.0. It's also suitable for φ2.5/3.2/4.0 acid-coated electrodes, such as 6018/7013 electrodes.
Reliable and Safe Operation: With upgraded IGBT technology, this MIG welder ensures stable heat dissipation, improved power efficiency, and enhanced welding quality. Safety is a priority, and this welder is designed to provide a reliable and secure welding experience.
description2
| 2T | Manual mode | 0.6 | Solid wire |
| 4T | Semi-automatic mode | 0.8 | Solid/flux wire |
| Spot | Spot welding | 0.9 | Solid/flux wire |
| ARC | ARC FORCE | 1 | Solid/flud wire |
| HS | HOT START | MIG | SYN MIG,Anto setting |
| VRD | VRD | CO2 | Fe CO2 |
| ASK | ANTI-STICKER | MIX | 75%Ar+25%CO2 |
| MIG | Manual setting | Flux | Flux |
| MMA | Stick welding | ||
| TIG | LIFT-TIG argon welding |
SPECIFICATION
| Model | MIG/MMA-160A | MIG/MMA-180A | MIG/MMA-200A |
| Input power | 220v 110/220V | 220v 110/220V | 220v 110/220V |
| Rated input capacity(KVA) | 5.7 | 6.7 | 7.7 |
| Rated input current(A) | 25.7 | 30.3 | 35.1 |
| Open circuit voltage(V) | 60 | 60 | 60 |
| MIG output current range(A) | 35-160A | 35-180A | 35-200A |
| MMA output current range(A) | 20-140A | 20-160A | 20-180A |
| Rated duty cycle(%) | 60 | 60 | 60 |
| Suitable welding wire(mm) | 0.6/0.8/0.9/1.0 | 0.6/0.8/0.9/1.0 | 0.6/0.8/0.9/1.0 |
| Suitable electrode(mm) | 1.6-3.2 | 1.6-4.0 | 1.6-4.0 |
| Protection grade | F | F | |
| Insulation class | IP21S | IP21S | IP21S |
| N.W(Kgs) | 14.2 | 15 | 16 |
| The machine size(cm) | 46*22*32 | 46*22*32 | 46*22*32 |
Welding Photos Show You
● With a simple 110/220V adapter, it could be plugged dedicated 220V outlet for more power.
● Suitable for various kinds of metal materials, such as stainless steel, mild steel,cast iron,sheet metal and square pipe as well.
● The higher current, the faster the melting speed of the rods,it is less likely to be damaged when welding large workpieces. Therefore, not only can welding efficiency be improved, but the machines are also more durable.
Factory display
Exhibition
FAQ
1.Q: Are you a factory or trading company?
A: We are factory with about 4 assembly product line and 100 employees,we have ERP system and equipment, so we can meet both your quantity and quality demands.Our factory qualification rate is 99.998%
2.Q: Can I get some samples?
A: Yes,we are glad to offer you samples.After price and large order confirmed, the samples fee will be regressed.
3.Q:MOQ
A:Generally if you choose the different products,our minimum order qty.also will be different.
4.Q : Is OEM and ODM service available ?
A:Yes, product could print your logo , or customized by your design .
5.Q : How is your quality control?
A: Strict quality control is performed in every procedure from material sourcing, processing and testing to packing.Each machine loading test at least 20 minute.
6.Q: Delivery
A:The goods need about 45 days to be made after receive deposit.
7.Q:Payment
A:30% deposit,70% balance, you could pay by T/T, L/C, Action Now
8.Q:Why choose Yike?
a. We are welding machine MANUFACTURER,so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,IGBT tube, diode,capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of repairing,we just need to change the bad pc board.
d. We provide Warranty period of 1 year for all our items
